Negative Trigger Relay Wiring
Here is the diagram for the normally off circuit they have: If the voltmeter shows +12v whil e activating the switch, make the connections shown in door lock/unlock diagram 2 for negative trigger.
Wiring Positive To Negative Input Relay Output Wiring

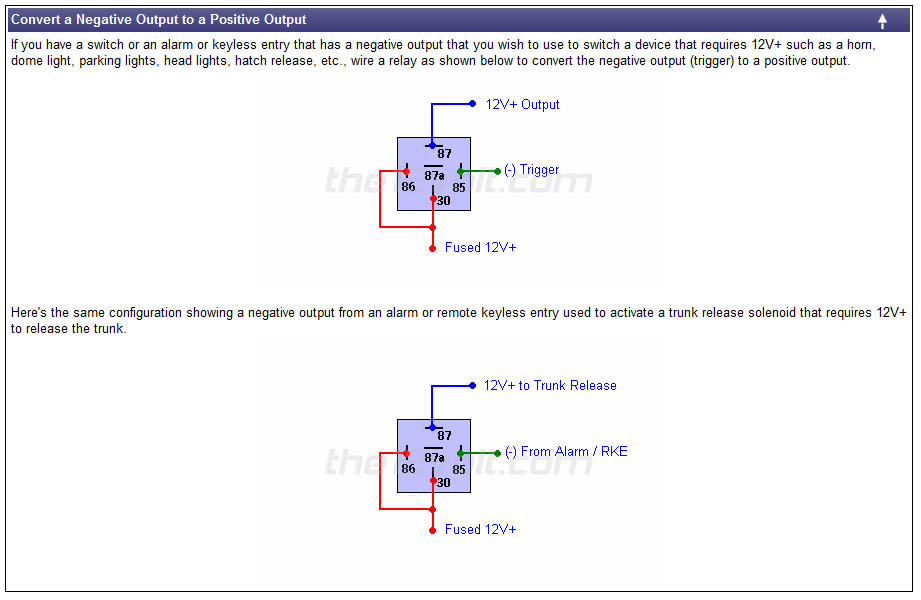

If you have a switch or an alarm or keyless entry that has a negative output that you wish to use to switch a device that requires 12v+ such as a horn, dome light, parking lights, head lights, hatch release, etc., wire a relay as shown below to convert the negative output (trigger) to a positive output.
Negative trigger relay wiring. How do you wire a polarity switch to a relay? Correct me if i'm wrong but i'm assuming that if i send 5 v, 2 a, to the trigger pin it will fry it. Usually the triggering signal is called a clock signal.
And here is the diagram i came up with to accomplish my task. In this video, i explain why it is necessary to use a relay in a circuit. Triggered polarity is really not a good way to describe how a latching relay circuit in your case works.
How do you wire a trigger relay? May god's grace bless you in. Circuits only draw the power they need.
3.repeat step 2 with the negative voltmeter lead connected to +12v. As i understand (not much at all) what the fast efi system wants to do, it appears that the fast ecm will apply a negative signal on the fuel pump control wire, which i want to turn into a positive signal to power my fuel pump relay. In that case, install a conventional relay as mentioned above, to feed +12v (relay terminals #30 & #87) to trigger the electric fan solenoid.
Fuel pump relay green wire negative control side of a relay for powering a fuel pump. There are several other benefits to wiring in this manner. The lights have four wires, a positive, and three negatives that create the colors.
If the power trunk release requires a positive pulse to operate,use this circuit. This means that regardless of the vehicle wiring, positive or negative switched, the driving light wiring is the same. Negative switched signal pin 30:
A far easier method is to always wire the trigger for your relay across the high beam bulb circuit, instead of from +12v to ground. To interface with a negative trigger parking light with resistance to ground, use a relay and wire as shown: Here is the wiring harness:
This is the relay i bought: Once this has been done, connected pin 86 to the positive terminal of the source as well. 14 single shot upon application of input voltage, the time delay relay is ready to accept a trigger.
You don't send 5 v to it. Wire this pin directly to the positive power source. When we say positive triggered or negative triggered in this case it lends to confusion.
The benefit, in my opinion, of running a negative triggered relay is that you dont have to run power up to a switch panel, or to a single switch. Hidden magnetic reed switch to +12vdc 87 86 87a 30 85 to unlock switch to unlock motor ground. Less chance of shorting or fire.
However, do note that we can use either one of the circuits in the wiring of the fog lights. 16 awg ul recognized copper wire. Wire this directly to the positive power source.
As i stated before, i'm not great with technical terms so please pardon that. Wire this pin directly to the ground switched on/off signal. Convert negative trigger to positive output.
This pin will be connected to your new device. Relay is ready to accept a trigger. What is negative trigger wire?
Negative)when the system has been powered up. This is usually important, the same 12v that supply the haltech, needs to supply the 12v side of the relay coil. The load (lights, fan, etc.) is connected through pin 87 to the negative terminal of the power source.
The other side of the relay coil goes to the haltech trigger. This device will power on when the relay gets the signal via pin 86. Negative and positive triggers are the two main types of door locking systems.
In the fog light relay wiring diagram shown above, we can see two separate circuits which include the positive trigger circuit and negative trigger circuit that are used to wire fog lights. The other leg for the relay coil goes to the negitive trigger from the haltech. The triggering event occurs either when the clock goes from a logical zero to a logical one (called a positive edge trigger) or when it goes from logical one to a logical zero (called negative edge trigger).
You have provided a diagram that shows you. On vehicles with a negative trigger parking light wire with resistance to ground that must be relay isolated, use a relay to isolate the parking. The entire panel could be grounded with no power.
I then demonstrate how to wire a 5 pin relay with a negative trigger wire. A relay board is used when you're using a switch to power on a load (water pump, fans, etc.). You connect it to ground.
My question is how do i wire up the trigger. Anyway, it works and life is good. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.
When trigger is applied, the output is energized and timer delay (t) begins.
